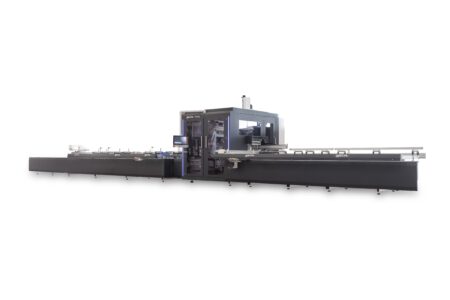

3 or 4 axis CNC machining center for heavy duty application, designed to work on extruded aluminum, light alloy and steel materials.
The gantry type structure guarantee stability and tolerances especially for heavy duty work either on Aluminum or Steel.
• 8000 mm (315″) machining length • 650 x 300 mm (25.6″ x 11.8″) machinable cross-section • 8.5kw – 10kw spindle (optional) • n. 12 tools magazine
3 or 4 axis CNC machining center designed to work on extruded aluminum, light alloy, PVC and light steel materials.
Wide clamping capacity, the machine can allocate a full door frame or garage sandwich panel and machine all in one.
• 8000 mm (315″) machining length • 650 x 300 mm (25.6″ x 11.8″) machinable cross-section • 5.5kw / 7.5kw spindle (optional) • n. 8 tools magazine
Ultra high speed 4 axis CNC machining center designed to work on extruded aluminum, light alloy, PVC and light steel materials.
• 8000 mm (315″) machining length • X axis speed 150 m/min (5905.5 inches/min) • 250 x 200 mm (9.8″ x 7.9″) machinable cross-section • n. 11 tools magazine • 8.5kw spindle
4 axis CNC machining center designed to work on extruded aluminum, light alloy, PVC and light steel materials.
• 4000 mm (157.48″) machining length • 250 x 200 mm (9.8″ x 7.9″) machinable cross-section • 6kw – 8.5kw spindle (optional) • n. 10 tools magazine
• 4000 mm (157.48″) machining length • X axis speed 150 m/min (5905.5 inches/min) • 250 x 200 mm (9.8″ x 7.9″) machinable cross-section • n. 10 tools magazine • n. 10 tools magazine• n. 10 tools magazine • 8.5kw spindle
• 3200 mm (126″) machining length • Automatic setting of the clamps, positioned by spindle • 250 x 170 mm (9.8″ x 6.7″) machinable cross-section • 3.8kw – 5.5kw spindle (optional) • n. 5 tools magazine
3+1 axis CNC machining center designed to work on extruded aluminum, light alloy, PVC and light steel materials.
• 2900 mm (114″) machining length • Manual setting of the clamps, with laser indicator • 250 x 170 mm (9.8″ x 6.7″) machinable cross-section • 3.8kw – 5.5kw spindle (optional) • n. 5 tools magazine
Enclosed 5 Axis CNC machining center, designed to work on Aluminum extrusion profile, Light alloys, PVC and Steel materials.
• 8000 mm (315″) machining length • 300 x 230 mm (11.8″ x 9″) machinable cross-section • 10kw spindle • n. 12 tools magazine • n. Saw blade max diam 300 mm (11.8″)
5 axis CNC machining center designed to work on extruded aluminum, light alloy and steel materials. The gantry type structure guarantee stability and tolerances especially for any sector, the ideal machine for curtain walls and window walls profiles.
• 8000 mm (315″) machining length • 500 x 300 mm (19.7″ x 11.8″) machinable cross-section • 10kw spindle • n. 12 tools magazine • n. Saw blade max diam 450 mm (17.71″)
5 axis CNC machining center designed to work on Aluminum extrusion profile, Light Alloys and Steel materials for a large variety of industries and manufacturing sector.
The gantry type structure guarantee stability and tolerances especially for heavy duty work either on Aluminium or Steel.
• 8600 mm (340″) machining length • 550 x 300 mm (21.6″ x 11.8″) machinable cross-section • 12kw spindle • n. 18 tools magazine • n. Saw blade max diam 500 mm (19.68″)
Flat bed 3 axis CNC machining center designed to work on composit panels, ACM panels, auminium plates, and acrlic panels.
• 4000×2000 mm (157.48″ x 78.74″) machining capacity • 6000×2000 mm (236.22″ x 78.74″) machining capacity • n. 2 or 3 vacum pumps of 5,5 kw each • 7.5kw spindle • n. 12 tools magazine
No Product to show in this category.
• Machining center designed for producing components from a Aluminum extruded bar. • Automated sawing and machining line, ideal for producing short components • The possible machining operations are milling, drilling, tapping and cutting. • Useful stroke X = 2000 mm (78.74″); Y = 1050 mm (41.33″); Z = 500 mm. (19.68″) • N. 12 tool magazine • Cutting unit with blade Ø 500 mm (19.68″)
• Fabrication center for windows doors / curtain walls / window walls system • 11 Axis CNC • n. 4 spindle mounted on rotating ring (up to 6 spindles – optional) • Sawblade diameter 550 mm (21.65″) • Cutting capacity L 250 (9.84″) • Cutting capacity H 150 (5.90″)
Double mitre saw with a fixed unit on the left and the other one movable.
• 7″ Touch screen HMI • Automatic positioning of the movable unit • Pneumatic tilting of the heads (90°, 45° or 22,5°) • Ø 500mm (19.6″) saw blade • Available length: 4000mm (157.48″), 5000mm (196.85), 6000mm (236.22)
• Magelis 10″ touch screen HMI • Automatic positioning of the movable unit • Pneumatic tilting of the heads (90°, 45° or 22,5°) • Ø 500mm (19.6″) saw blade • Available length: 4000mm (157.48″), 5000mm (196.85), 6000mm (236.22)
• Magelis 10″ touch screen HMI • Automatic positioning of the movable unit • Servo blade tilting of the heads (any degrees between 90° – 22,5°) • Ø 500mm (19.6″) saw blade • Available length: 4000mm (157.48″), 5000mm (196.85), 6000mm (236.22)
• Magelis 10″ touch screen HMI • Automatic positioning of the movable unit • Pneumatic tilting of the heads (135°, 90°, 45° or 22,5°) • Ø 500mm (19.6″) saw blade • Available length: 4000mm (157.48″), 5000mm (196.85), 6000mm (236.22)
• Magelis 15″ touch screen HMI • Automatic positioning of the movable unit • Servo blade tilting of the heads (any deg between 135° – 22,5°) • Ø 500mm (19.6″) saw blade • Available length: 4000mm (157.48″), 5000mm (196.85), 6000mm (236.22)
• Magelis 10″ touch screen HMI • Automatic positioning of the movable unit • Pneumatic tilting of the heads (90°, 45° or 22,5°) • Ø 550mm (21.65″) saw blade • Available length: 4000mm (157.48″), 5000mm (196.85), 6000mm (236.22)
• Magelis 10″ touch screen HMI • Automatic positioning of the movable unit • Pneumatic tilting of the heads (135°, 90°, 45° or 22,5°) • Ø 550mm (21.65″) saw blade • Available length: 4000mm (157.48″), 5000mm (196.85), 6000mm (236.22)
• Magelis 15″ touch screen HMI • Automatic positioning of the movable unit • Servo blade tilting of the heads (any deg between 135° – 22,5°) • Ø 550mm (21.65″) saw blade • Available length: 4000mm (157.48″), 5000mm (196.85), 6000mm (236.22)
Double mitre saw with upstroke blade feed with radial and pivoting motion
• Magelis 15″ touch screen HMI • Automatic positioning of the movable unit • Servo blade tilting of the heads inwards (any deg 90° – 45°) • Ø 600mm (23.62″) saw blade • Available length: 5000mm (196.85), 6000mm (236.22)
Compound 5 AXIS double mitre saw with upstroke blade feed with radial and pivoting motion
• Magelis 15″ touch screen HMI • Automatic positioning of the movable unit • Servo blade tilting of the heads inwards (any deg 90° – 45°) • Servo blade rotation of the heads (any deg 135° – 22.5°) • Ø 600mm (23.62″) saw blade • Available length: 5000mm (196.85), 6000mm (236.22)
Double mitre saw for STEEL and stainless steel profile
• Magelis 15″ touch screen HMI • Automatic positioning of the movable unit • Servo blade tilting of the heads inwards and outwards (any deg 135° – 45°) • Ø 400mm (15.74″) saw blade • Available length: 5000mm (196.85)
